This is a brief description of the components you can find inside a Nokia 6110. Click here for a table with the netlist.
Ecco una descrizione dei componenti che troverete all'interno di un Nokia 6110. Qui potete trovare una lista dei componenti.
|
 |
 |
 |
|
|
|
|
|
| Part number: | Manufacturer | Function | Data sheet availability |
|---|---|---|---|

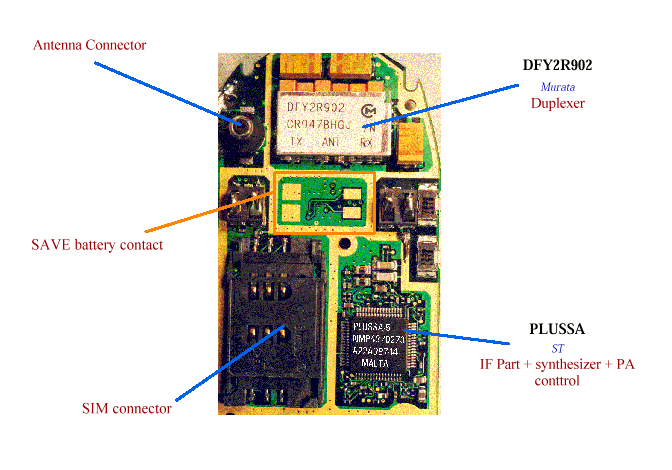

| DFY2R902 | Murata | Duplexer | Yes |
| PLUSSA | SGS Thomson | IF Path | No |

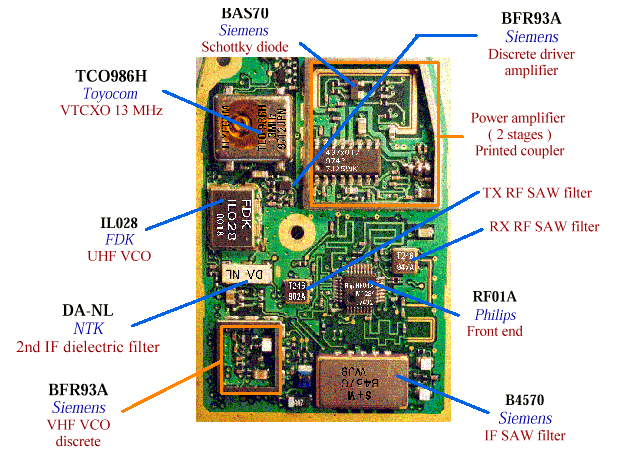

| TCO-986H | Toyocom | VTCXO 13MHz | Yes |
| DA-NL | NTK | Ceramic Filter (13 MHz) | No |
| IL028 | FDK | VCO UHF | No |
| B4570 | Siemens | If SAW filter | No |
| RF01A | Philips | Front end RF: LNA + RF Mixers Rx&Tx | No |
| BFR93A | Siemens | RF Bipolar Transistor | Yes |
| BAS70-07 | Siemens | Schottky diodes for RF detection | Yes |

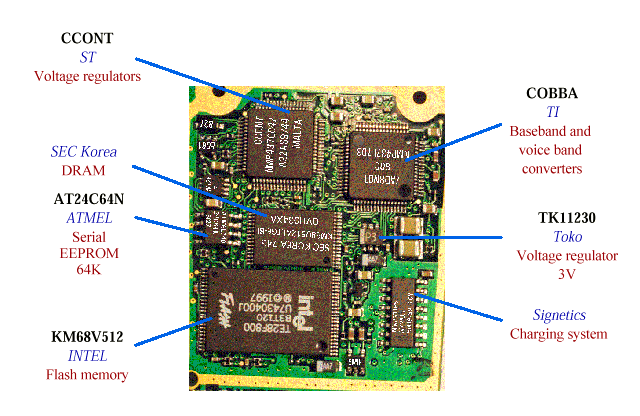

| CCONT | SGS Thomson | Voltage regulators | No |
| CCOBA | Texas Instruments | Baseband and voiceband codecs | No |
| TE28F800B3 | Intel | Flash Memory 8Mb | No |
| AN24C64N SI27 | Amtel | Serial EEPROM 8 Kb | Yes |
| KM68V512 | Samsung | DRAM 512 K * 8 bits 3.3 v | No |

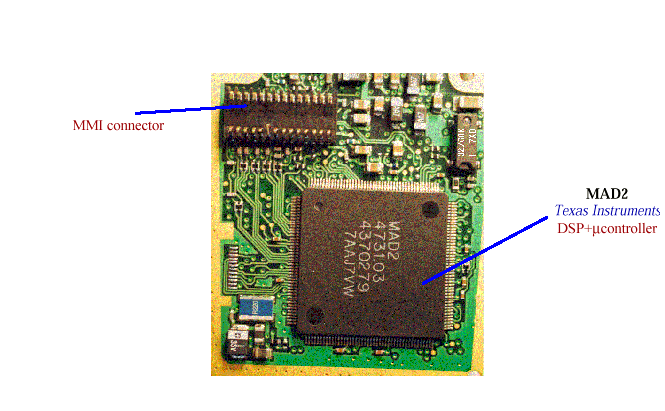

| MAD2 | Texas Instruments | DSP + Microcontroller | No |
| TK11230 | Toko | Voltage Regulator 3v | Yes |
